Texture synthesis

See Portilla-Simoncelli Texture Model for more details.

Attention

It is recommended that you first work through the Minimal metamer synthesis example exercise before this one! The optimization procedure here is a bit more complex.

# needed for the plotting/animating:
import matplotlib.pyplot as plt
import plenoptic as po
import torch

plt.rcParams["animation.html"] = "html5"
# use single-threaded ffmpeg for animation writer
plt.rcParams["animation.writer"] = "ffmpeg"
plt.rcParams["animation.ffmpeg_args"] = ["-threads", "1"]
# so that relative sizes of axes created by po.plot.imshow and others look right
plt.rcParams["figure.dpi"] = 72
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu")

The texture model requires a little more configuring to find reliably good metamers. In the original paper, the authors use coarse-to-fine synthesis, which starts with coarsest scales (i.e., lowest spatial frequencies) of the model representation and moves to finer and finer scales. In plenoptic, we have found that this is unnecessary for finding good metamers (though it is possible, using plenoptic.MetamerCTF), as long as one uses the torch.optim.LBFGS optimizer and a custom loss function, plenoptic.loss.portilla_simoncelli_loss_factory(). (See this issue if you are interested in how we came to this suggestion.)

The following block synthesizes a texture metamer using our suggested setup:

img = po.data.reptile_skin().to(DEVICE)
ps = po.models.PortillaSimoncelli(img.shape[-2:])
ps.to(DEVICE)
loss = po.loss.portilla_simoncelli_loss_factory(ps, img)
met = po.Metamer(
    img,
    ps,
    loss_function=loss,
)
opt_kwargs = {
    "max_iter": 10,
    "max_eval": 10,
    "history_size": 100,
    "line_search_fn": "strong_wolfe",
    "lr": 1,
}
met.setup(optimizer=torch.optim.LBFGS, optimizer_kwargs=opt_kwargs)
met.synthesize(max_iter=100, store_progress=True)

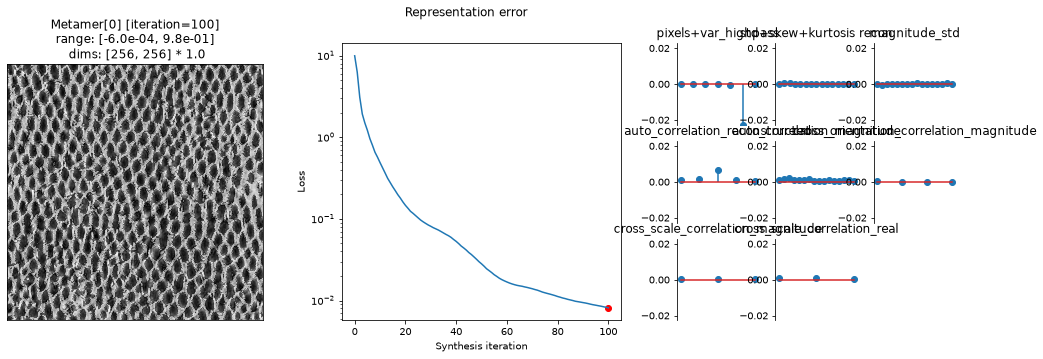

po.plot.synthesis_status(met);

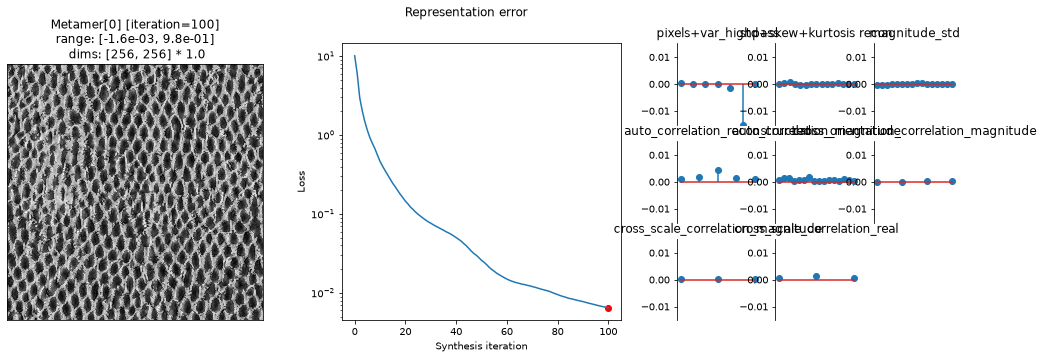

And let’s view that synthesis over time:

met.to("cpu")
po.plot.synthesis_animate(met)

Different target image

As we practiced earlier, we can change the target image for metamer synthesis straightforwardly. What does it look like to use a different texture? A non-texture image? Are any of these results surprising?

More texture images

If you run the following lines, you can download some additional texture images used in the original Portilla and Simoncelli paper for use with the model.

texture_path = po.data.fetch_data("portilla_simoncelli_images.tar.gz")

natural = [
    "3a",
    "6a",
    "8a",
    "14b",
    "15c",
    "15d",
    "15e",
    "15f",
    "16c",
    "16b",
    "16a",
]
natural = po.load_images([texture_path / f"fig{num}.jpg" for num in natural])
artificial = ["4a", "4b", "14a", "16e", "14e", "14c", "5a"]
artificial = po.load_images([texture_path / f"fig{num}.jpg" for num in artificial])
hand_drawn = ["5b", "13a", "13b", "13c", "13d"]
hand_drawn = po.load_images([texture_path / f"fig{num}.jpg" for num in hand_drawn])

# Why not visualize them as well?

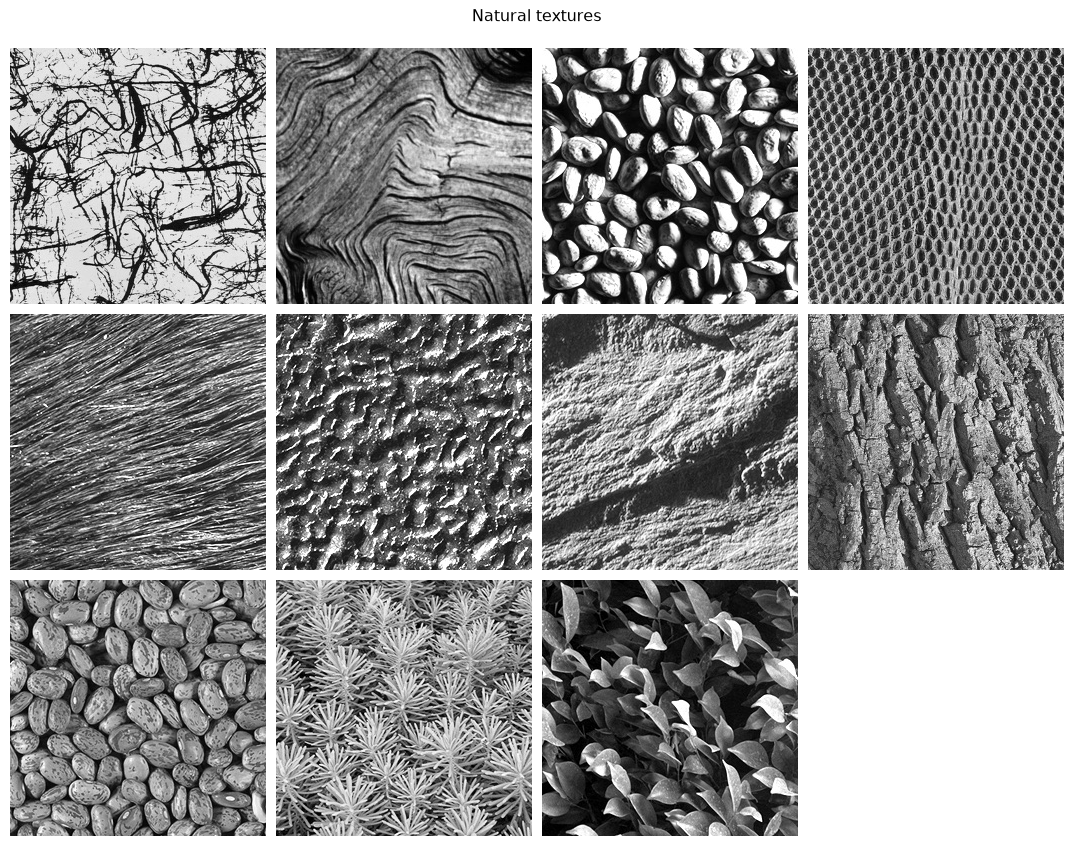

fig = po.plot.imshow(natural, col_wrap=4, title=None)
fig.suptitle("Natural textures", y=1.05)

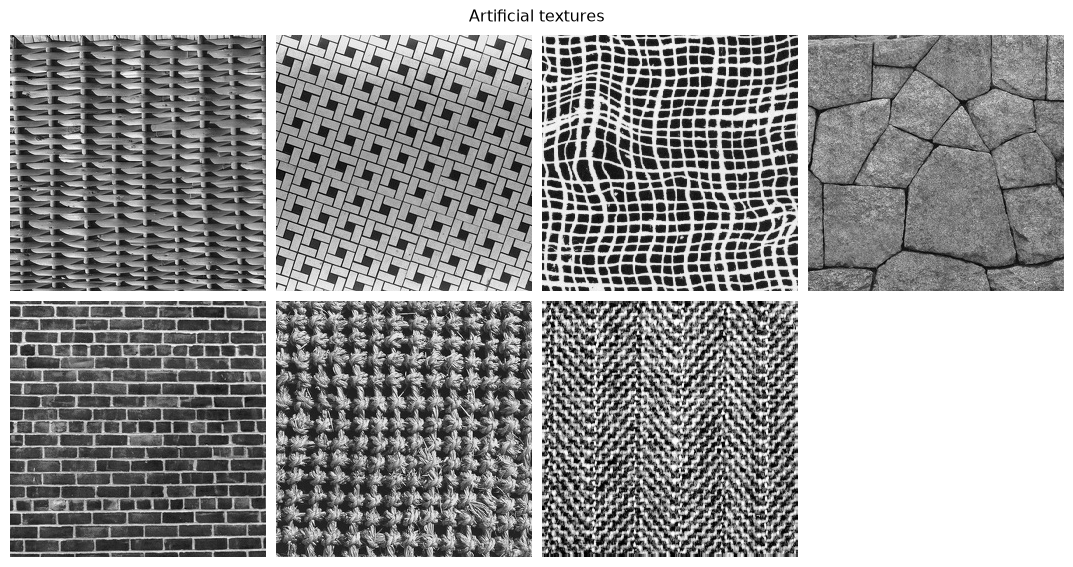

fig = po.plot.imshow(artificial, col_wrap=4, title=None)
fig.suptitle("Artificial textures", y=1.05)

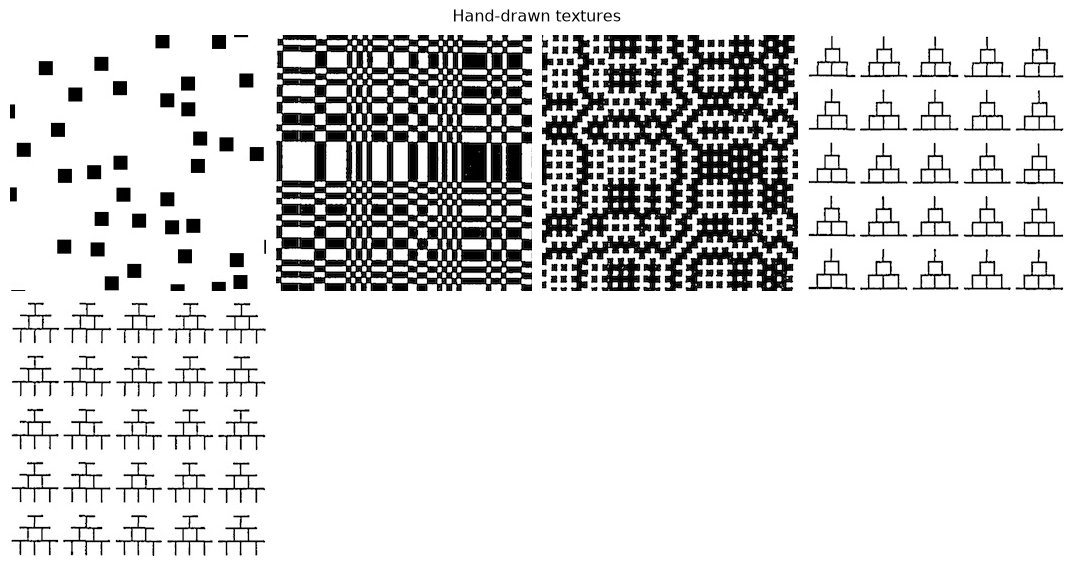

fig = po.plot.imshow(hand_drawn, col_wrap=4, title=None)
fig.suptitle("Hand-drawn textures", y=1.05)

Downloading file 'portilla_simoncelli_images.tar.gz' from 'https://osf.io/download/eqr3t' to '/home/jenkins/agent/workspace/eurorse_plenoptic-workshops_main/.cache/plenoptic'.

Untarring contents of '/home/jenkins/agent/workspace/eurorse_plenoptic-workshops_main/.cache/plenoptic/portilla_simoncelli_images.tar.gz' to '/home/jenkins/agent/workspace/eurorse_plenoptic-workshops_main/.cache/plenoptic/portilla_simoncelli_images.tar.gz.untar'

Text(0.5, 1.05, 'Hand-drawn textures')

Different initial image

We can also change the initial image and run metamer synthesis. What does it look like if our target is a texture, but our initial image is a face?
